匠心A270C

27英寸一体机

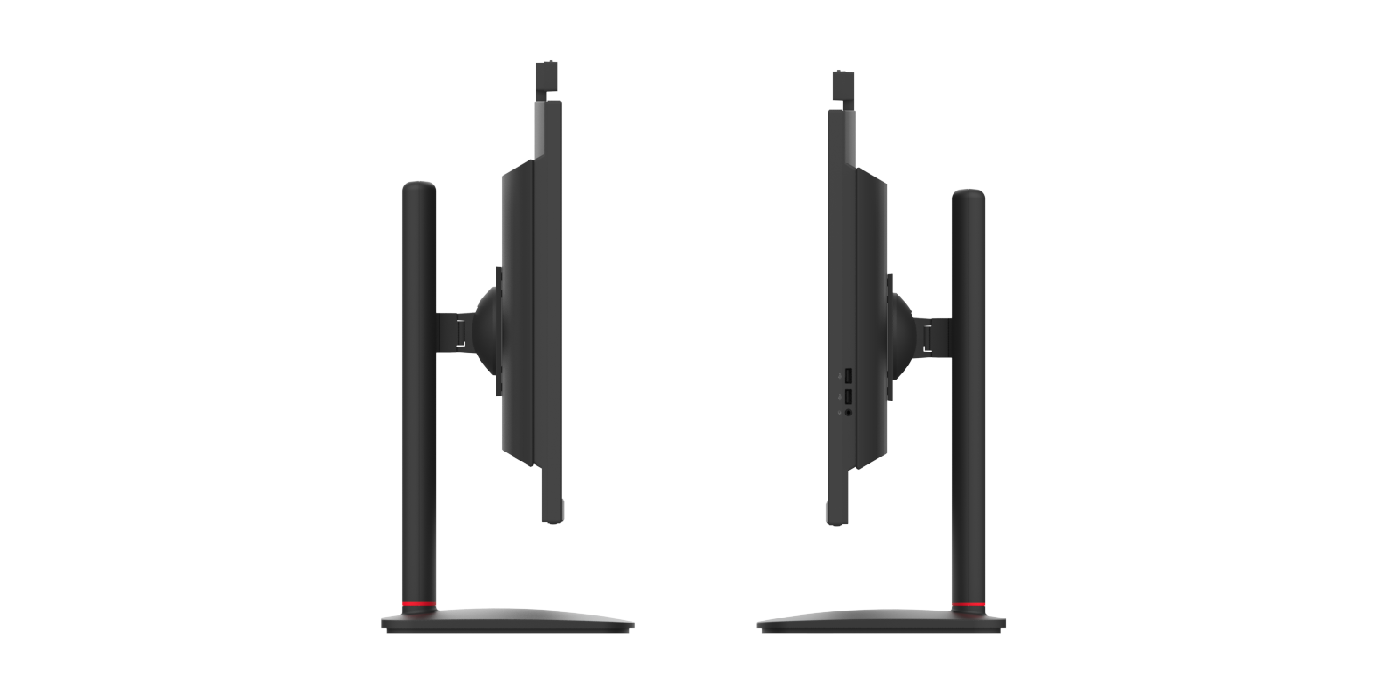

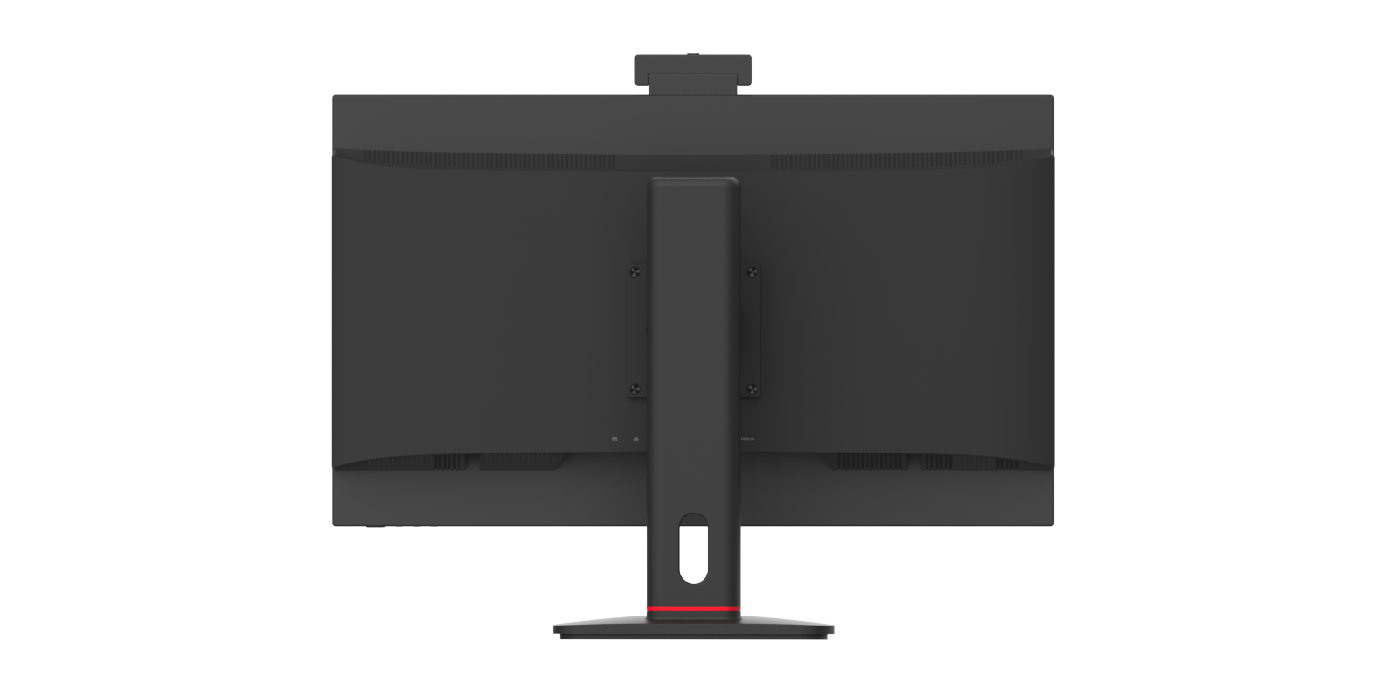

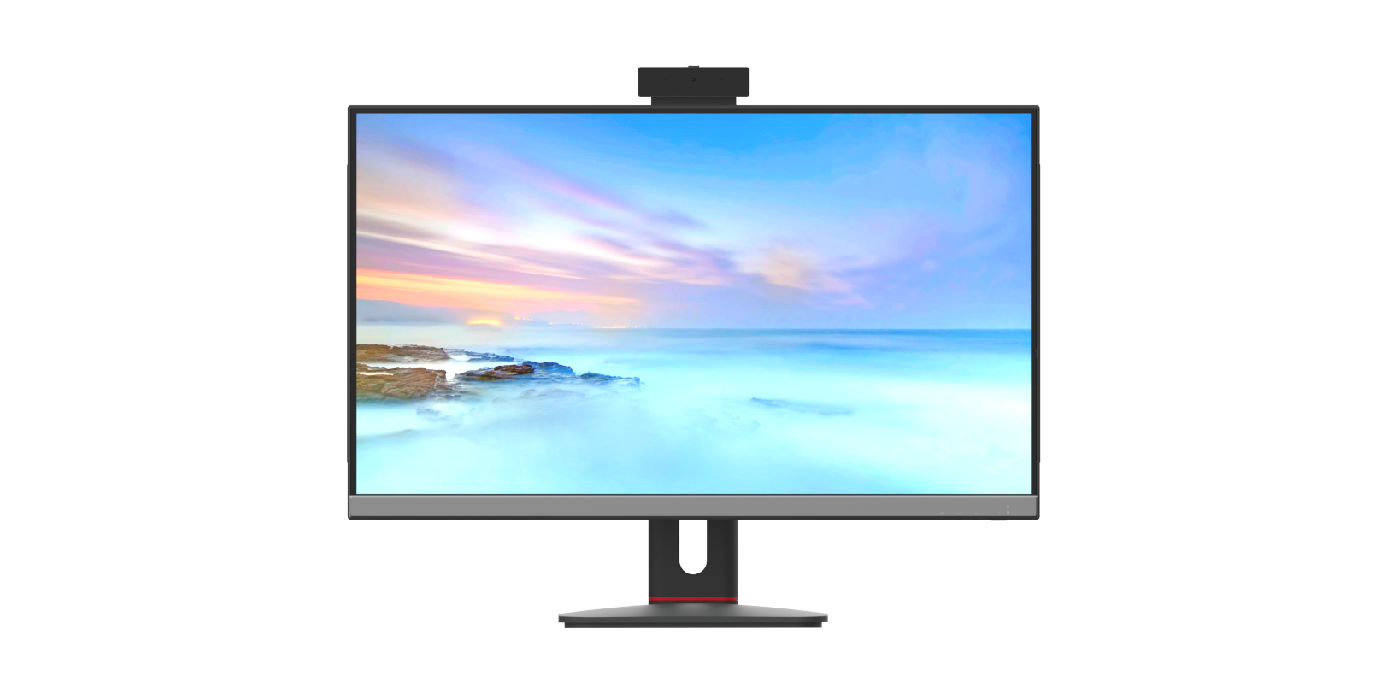

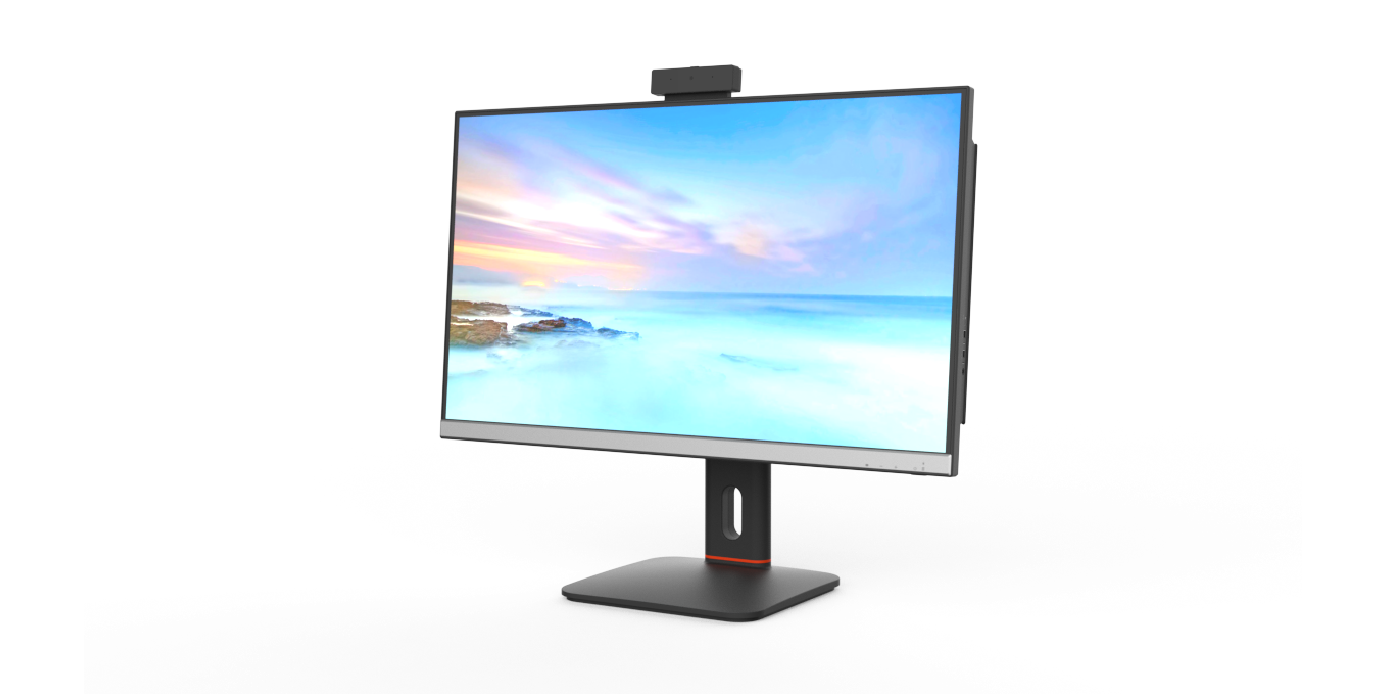

27"FHD窄边框一体机，采用intel平台，具有丰富的外部接口，机身支持前倾后仰,上下左右旋转,广泛应用于家用商务办公等场景。

留言咨询业务咨询

规格参数

CPU	CPU	Intel 12th/13/14th Core i3/Core i5 /Core i7/Pentium/Celeron
CPU	TDP	≤65W
Display	Graphic card	Intergrated
	Multi displays	Support Two or Three displays
	Interface	1 x HDMI-Out 4K @30Hz
Network	Lan IC	1 x LAN IC
	Lan Interface	10/100/1000Mbps
	Lan Connector	1 x RJ45 Ports
	Wireless Type	M.2 Key E 2230 Module
	Wireless Interface	Mini PCIe WiFi/BT Module, Intel 3165/ Intel AX101/Intel AX210
	4G/5G	Not Support
I/O interface	Serial Port	1 x RS232 COM or 1x VGA(Option)
	USB	4 x USB3.0A
	Button	1 x PowerButton, 2x USB3.0*2，1xcombo 1xUSB2.0C (PD 18W)
	SIM CARD	Not Support
	AUDIO	1 x Line Out ; 1 x MIC-In
	POWER	1 x 2.5/5.5 DC-IN Connector
System	Memory	Dual SoDIMM DDR4 Max. 64 GB
	Storage	1 x M.2 Key M 2280 Size For NVMe/SATA SSD
	OS	Window11
	WatchDog	Not Support
	Auto Power On	Yes
	RTC	Power on at specific time everyday
	Power Input	12-19v 2.5/5.5 DC-In
	Dimension	L615 x H554 x W141mm
	Operating Temp.	0~40℃
	Operating Humidity	10%~90% non-condensing
	Storage Temp	-20~70℃
	Operating Humidity	5%~95% non-condensing
